| 브랜드 이름: | Realpark |
| 모델 번호: | RPH254-SERVO |
| MOQ: | 1 세트 |
| 가격: | Welcome to contact us! |
| 배달 시간: | 1-2 주 |
| 지불 조건: | L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram |

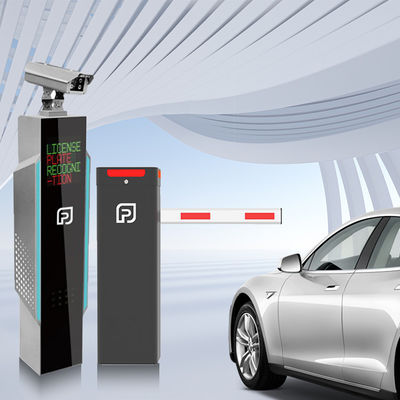

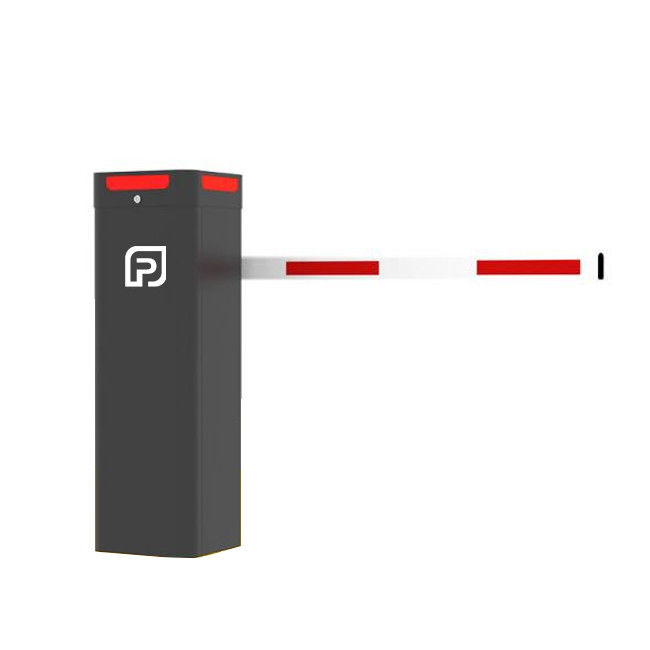

High-Speed 24V DC Servo Barrier Gate with Anti-Crush Protection RPH254
The RPH-254 is a high-speed, industrial-grade automatic barrier gate powered by a 24V DC servo motor, designed for smooth and efficient parking access control. It features anti-crush protection, LED indicators, and customizable communication options (RS232/485).
Key Features:
✅Ultra-fast operation with precision DC servo motor (200W)
✅Advanced anti-crush system (infrared + pressure wave + loop detection)
✅Industrial-grade aluminum alloy construction
✅Smart LED traffic indicators (red/green status lights)
✅1-5m adjustable elliptical barrier arm
✅Low-voltage 24V DC operation for energy efficiency
✅Supports RS232/485 communication for system integration
✅IP54 weatherproof rating for outdoor durability
Technical Specifications:
✅Power Supply: AC 220V ±10%, 50Hz (converts to 24V DC)
✅Motor Type: High-torque DC servo
✅Peak Current: 30A
✅Protection: Over-current/voltage/short-circuit
✅Control Interface: 4-digit LED + 4-button keypad
✅Operating Temperature: -30°C to +70°C
Why Choose RPH254?
✅Safety First - Triple-layer anti-crush protection prevents accidents
✅Lightning Fast - 3-5 second open/close cycle time
✅Built to Last - Military-grade materials withstand harsh conditions
✅Smart Control - Remote operation + system integration capabilities
✅Energy Efficient - 30% lower power consumption than AC motors
Applications:
✔ Smart parking systems
✔ Toll stations
✔ Gated communities
✔ Industrial facilities
✔ Airport parking
Customization Options:
Arm length customization (1-6m available)
Branding/OEM services
Special color requests
Custom communication protocols
Package Includes:
Barrier gate main unit
Control box
Installation manual
Basic remote control (optional)
FAQ
1. What makes the RPH254 different from standard barrier gates?
Our RPH254 features a high-performance DC servo motor that provides faster operation (3-5 second cycles) and smoother movement compared to traditional AC motor gates. The advanced anti-crush system with triple protection (infrared + pressure wave + loop detection) offers superior safety.
2. What power supply is required for installation?
The gate operates on standard AC 220V ±10%, 50Hz power, which is converted to 24V DC for the motor. This low-voltage operation makes it safer and more energy-efficient.
3. How long is the standard barrier arm? Can it be customized?
The standard elliptical arm comes in 1-5 meter lengths. We can customize lengths up to 6 meters for special applications through our OEM service.
4. What safety features does it include?
The RPH254 includes: Infrared beam detection,Pressure wave sensors,Loop detectors,Automatic emergency stop,Over-current/voltage protection
5. Can it operate in extreme weather conditions?
Yes, with an IP54 rating, aluminum alloy construction, and high-temperature baking paint (180-250°C), it withstands temperatures from -30°C to +70°C and resists corrosion.
6. What communication protocols are supported?
The gate supports: Standard RS232 interface,Optional RS485 communication,Dry contact signals,Wireless remote control
7. How does the LED indicator system work?
The smart LED lights show:
Solid red: Gate closed and secured
Solid green: Gate fully open
Flashing: Movement in progress
8. What maintenance does it require?
Minimal maintenance needed:Annual lubrication of moving parts,Periodic sensor alignment check,Visual inspection of wiring every 6 months
9. Can it integrate with existing parking systems?
Yes, through:Our provided SDK/API,Standard RS232/485 protocols,Dry contact interfaces,Custom integration services
For more technical details or customization inquiries, please contact our support team at realpark@realparkanpr.com. Our engineers are ready to help you design the perfect solution for your parking management needs.
