| 브랜드 이름: | Realpark |
| 모델 번호: | RPL-POF-PS01 |
| MOQ: | 1 세트 |
| 가격: | Welcome to contact us! |
| 배달 시간: | 1-2 주 |
| 지불 조건: | L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram |

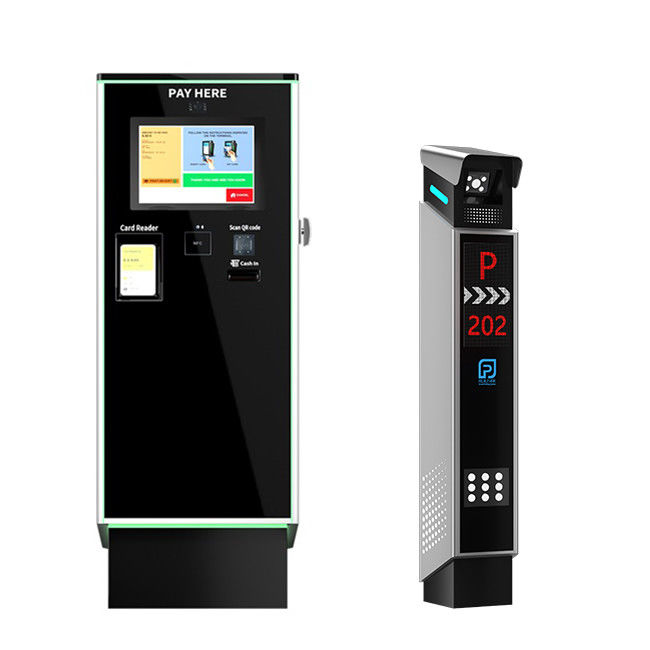

Touchless Parking Pay Station - 19.1" Self-Service LCD Ticket Machine
Our Touchless Parking Pay Station is a state-of-the-art self-service payment kiosk featuring a 19.1-inch LCD display for seamless, contactless transactions. Designed for parking lots, shopping malls, airports, and smart cities, this system enables drivers to pay quickly via QR code, credit/debit card, NFC, or mobile apps—eliminating long queues and reducing operational costs.
| Touchless Parking Pay Station Configuration POF | |||
| No. | Module | Specifications | Technical Parameters |
| 1 | Main control module | Specify | Motherboard: 10 RS-232 ports, 8 USB ports, 2 1000M network ports, Display interface: 1VGA+1HDMI, integrated sound card, graphics card, network card, USB; CPU: Intel I5 4th generation; Memory: 4G, Hard disk: SSD 120G. |
| 2 | Host chassis + power supply | Specify | 400W power supply |
| 3 | Display capacitive touch integrated screen | Specify | The screen size is 19 inches, the response time is 6ms, the brightness is 260 Nits, the contrast ratio is 700:1, and the viewing angle is 130 degrees horizontally and 110 degrees vertically. |
| 4 | Banknote circulation module | Specify | High capacity, high security bill validator Proven field reliability Easy maintenance with free firmware updates Lockable, removable cash drawer for up to 1000 notes Superior performance - auto-centering technology straightens notes before reading Accepts notes up to 85mm wide and standard industry barcode tickets Power supply:Required: 12V Standby: 400mA Running: 1.5A Peak: 3A Protocol: SSP IF003 ccTalk MDB Interface: USB RS232 Open Collector:Frame Options Standard Frame: Metal Frame Self-aligning Frame Various lighting options Cash drawer options: 500 notes 1000 notes Note sizes:Width: 60 - 85mm Length: 115 - 170mm MCBF: 200,000 |
| 5 | POS three-in-one card reader | Specify | Reserved space for adding cover plate (model specified) Pax-IM30, please check the 2 bank card POS machine data sheets in the PDF file |
| 6 | Barcode scanning | Specify | Image sensor: 1280H800V Field of view: 43° horizontal, 50° diagonal, 28° vertical Read rate: 50ms Decodable symbols: 2D QR code, etc. 1D: UPC/EAN/CODE128/CODE32/CODE39/CODE93/UCC/UPCA, etc. Reading accuracy: 5 mil Reading distance: CODE 39 (12 mil): 20cm-55cm, UPC-A (16 mil): 10cm-60cm, QR code (payment code): 5cm-130cm Contrast: >25% Deflection angle: horizontal ±55°, vertical ±55°, rotation 360° Reading mode: trigger/sensing/continuous Communication interface: Standard: USB, optional: TTL/RS485/RS232 Dimensions: length, width, height (65mm, 64mm, 29mm) Weight: 36g Operating voltage: 4.75V-12.6V Rated power: 0.80W Operating current: 160mA Standby current: 90mA Reading material: screen, paper, metal, PVC film Indicator: two-color indicator |
| 7 | Intercom system | Specify | Intercom (to be confirmed later) |
| 8 | Printer module | Specify | Printing method: Line thermal printing Print density: 8 dots/mm Printing direction: Paper feed direction Printing speed: 150 mm/sec (max) Paper width: 79.5±0.5 mm Effective printing width: 72 mm Paper handling: Automatic paper cutting Line width: 3.75 mm |
| 9 | Coin circulation module | Specify | Five structural parts are reserved for sealing Mixed coin hopper and recycler Requirement: 24V Standby: 200mA Running: 3A Peak: 6.5A Protocol: SSP ccTalk Interface: USB option open collector Coin size: 18 - 28.5mm Thickness: 1.65 - 3.2mm Coin capacity: 1500 (€1) or 1300 (£1) or 800 (£2) Multiple denominations: up to 11 denominations Mixed coin capacity: 200 (€2) + 750 (€1) + 500 (50c) Payout speed: up to 12 coins per second MCBF: 200,000 |
| 10 | Alarm module | Specify | Security warning system (access control device + control board + sensor + alarm) |
| 11 | LED light | Specify | One set of breathing lights, one set of blue lights (with control board) |
| 12 | Combined power supply module | Specify | Provide 12V, 24V (110V 50HZ) power for printers and other components |
| 13 | Sound effect system | Specify | One on each side, effective output 25W. |
| 14 | Cooling system | Specify | 4 fans with dust screen |
| 15 | Tempered glass panel | Specify | Thickness: 3mm |
| 16 | Banknote and coin password safe | Specify | Factory settings: User password "1111", Administrator password "00000000". Unlock: Enter the password you set, the password length should be 4-10 digits (if not set, please use the factory password). Each digit entered will have a sound prompt to indicate validity. After entering the password, press the OK button |
| 17 | UPS power supply module | Specify | 1000VA, USB interface, with program control |
| 18 | Complete machine cabinet (outdoor powder) | Specify | Hall-style structure, with hot steel plate on the outside. Thickness of the whole machine shell: 1.5-2.0mm Appearance: novel, beautiful, and noble; Material: hard and thick, not easy to deform; Internal structure: modular maintenance method, simple and convenient maintenance; wiring is standardized and neat. Contains safe. Universal key for cabinet. (Note outdoor powder) |
| 19 | Complete machine cabinet multi-point linkage lock | Mechanical multi-point lock | Multi-point lock for whole cabinet |
| 20 | Complete machine accessories | Circuit breakers, socket strips, wires, etc. | |
| 21 | Communication method | TCP/IP Method | |
Touchless Parking Pay Station Features:
✔ 19.1" High-Brightness LCD Touchscreen – Sunlight-readable, anti-glare display
✔ Fully Touchless Payment Options – QR code, NFC, credit/debit card, mobile wallet
✔ Multi-Language & Multi-Currency Support – Ideal for international locations
✔ Real-Time Cloud Connectivity – Remote monitoring & revenue tracking
✔ Thermal Printer Integration – Instant ticket & receipt printing
✔ IP65 Weatherproof Design – Resists dust, rain, and extreme temperatures
✔ ANPR/LPR Camera Compatibility – Auto license plate recognition for ticketless systems
✔ Solar-Power Ready – Optional solar panel for eco-friendly installations
✔ Vandal-Proof & Anti-Tamper Design – Reinforced metal housing
✔ Customizable Branding & UI – Display logos, ads, or parking instructions
✅ No Staff Needed – Fully automated, reducing labor costs
✅ Faster Transactions – Reduces queues with multiple payment methods
✅ 24/7 Operation – Works in all weather conditions
✅ Fraud Prevention – Secure digital payments (no cash handling)
✅ Scalable Solution – Connects to central parking management software
✅ Increased Revenue – Real-time reporting & dynamic pricing options
Parking pay station with QR code/credit card/NFC FAQ
Q1: What payment methods does it support?
A: QR code, credit/debit cards, NFC (Apple Pay/Google Pay), mobile apps, and cash (optional).
Q2: Is the screen visible in direct sunlight?
A: Yes, the high-brightness LCD (1000+ nits) ensures clear visibility.
Q3: Can it integrate with ANPR systems?
A: Yes, it works with LPR cameras for ticketless parking.
Q4: How is the pay station powered?
A: Standard AC power or optional solar panel (off-grid).
Q5: Does it print receipts?
A: Yes, a built-in thermal printer provides instant receipts.
Q6: Is it vandal-proof?
A: Yes, stainless steel casing & tamper-proof screws prevent damage.
Q7: Can I customize the software interface?
A: Yes, OEM/ODM services allow UI, language, and branding changes.
Q8: What’s the operating temperature range?
A: -20°C to 60°C (-4°F to 140°F) for all-weather reliability.
Q9: How is data managed?
A: Locally stored or synced to cloud-based parking software.
Q10: Do you provide installation support?
A: Yes, we offer remote setup guides & on-site support (optional).
The Touchless Parking Pay Station with 19.1" Auto Payment Display is an advanced solution designed to enhance the parking payment experience by providing a fast, safe, and user-friendly interface for modern parking management.
Why Choose Us?
✔ 10+ Years in Smart Parking Solutions
✔ Competitive Pricing & Fast Delivery
✔ 24/7 Technical Support
✔ Free Consultation & Custom Quotes
Email: realpark@realparkanpr.com
Telephone: 0086-13501586176
